Superseal 1.0 Connector Overview

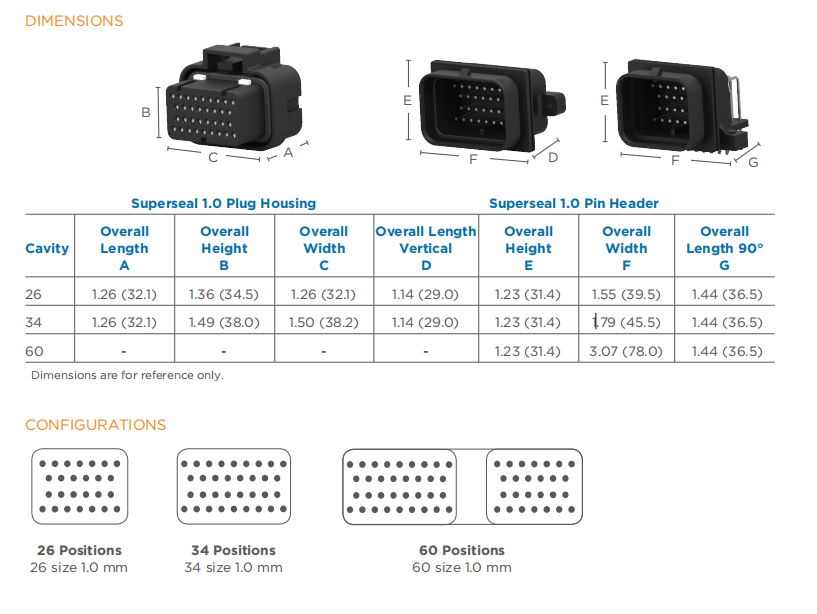

The Superseal 1.0 mm connectors are designed to meet the increasing need for dependable printed circuit board applications in harsh environments. The Superseal headers are available with straight or right-angle pins.

Various locking latch options and keying configurations are available.

SUPERSEAL 1.0 CONNECTOR PERFORMANCE SPECIFICATIONS

Current: Up to 15 amps

Temperature: Operating at temperatures -40°C to +125°C

Durability: After cap housing is connected, the plug housing is mated and then 78.4 N force is applied in a rocking motion. 25 test cycles.

Insulation Resistance: 100 megohms minimum. Test between adjacent contacts and between contact and earth with insulation resistance meter of 500 volts DC.

Immersion: Per JIS D0203

Random Vibration: Tested in each of three mutually perpendicular axis.

See Fig 8 in product document 108-78140.

Dielectric Withstanding Voltage: Insulation does not breakdown at 1000 volts AC or 1600 volts DC for duration of 1 minute between contacts and between contact and earth.

Voltage: 250 volts AC, DC

MATERIAL SPECIFICATIONS

Grommet: Silicone rubber

Housing: Thermoplastic

TPA: Thermoplastic polyester
