AMPSEAL Connector Overview

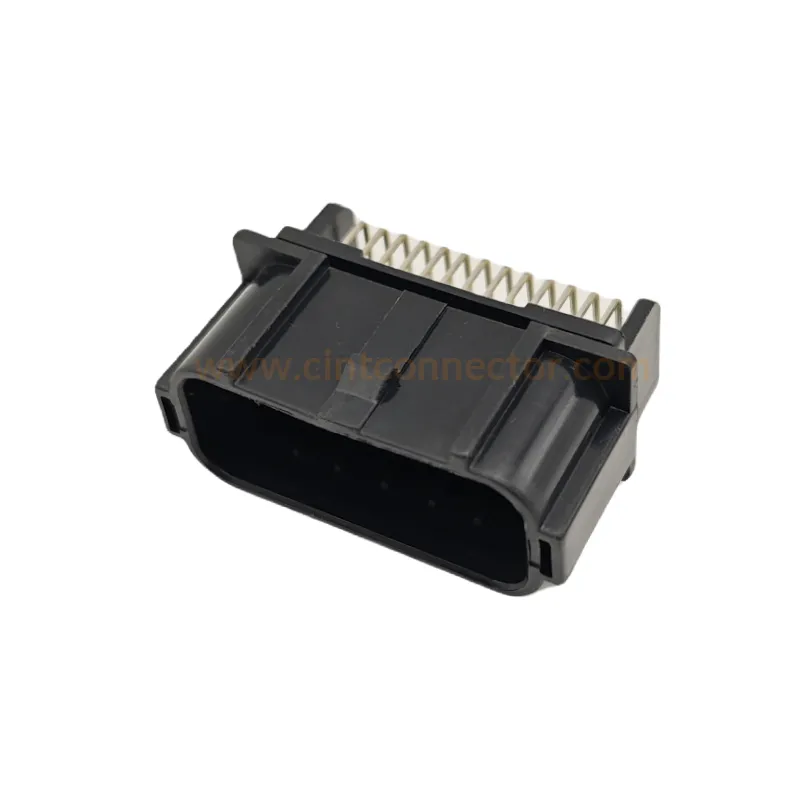

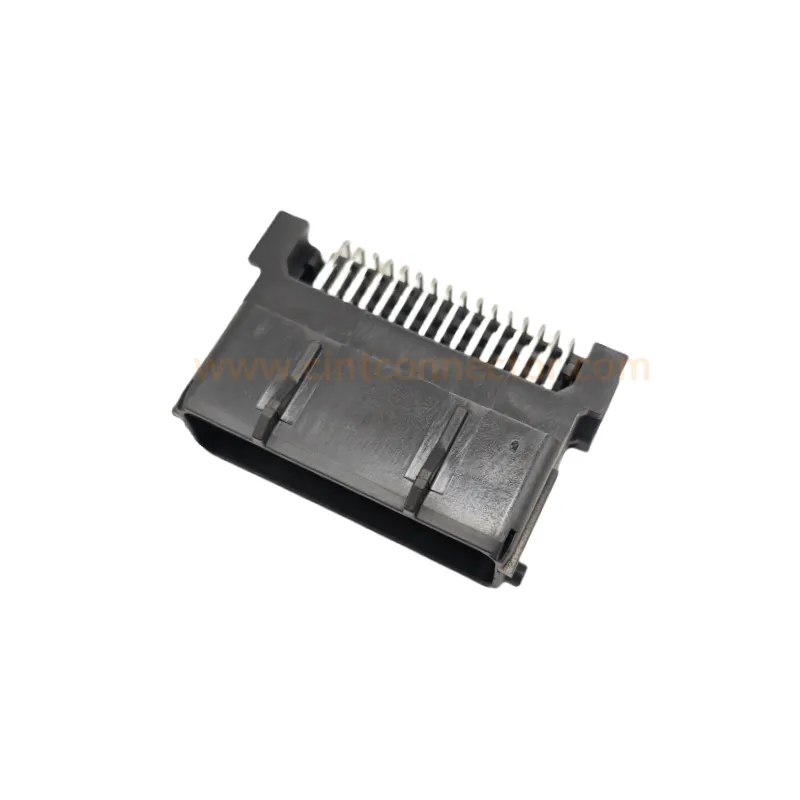

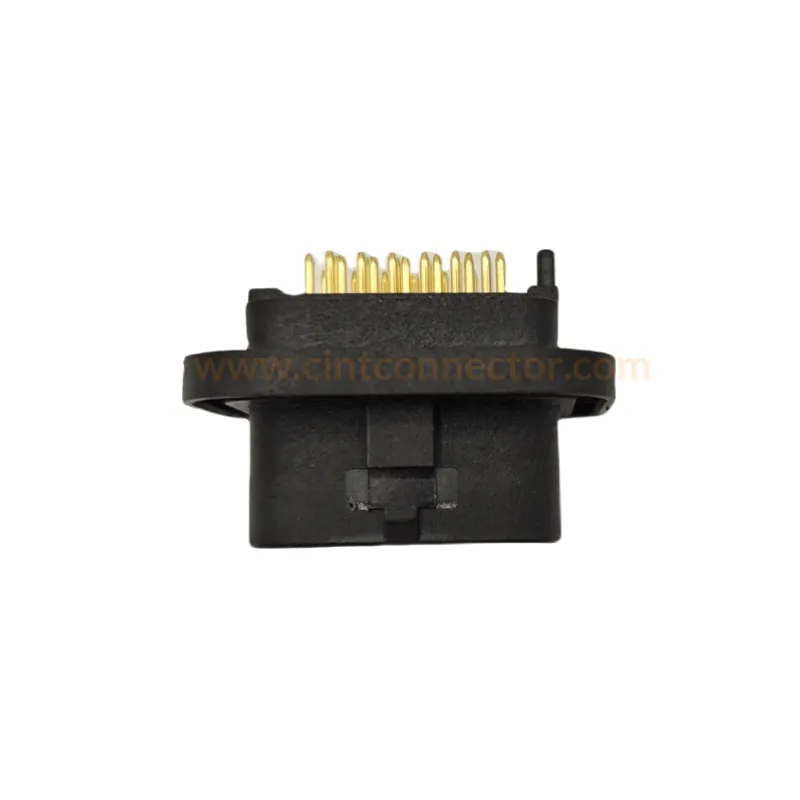

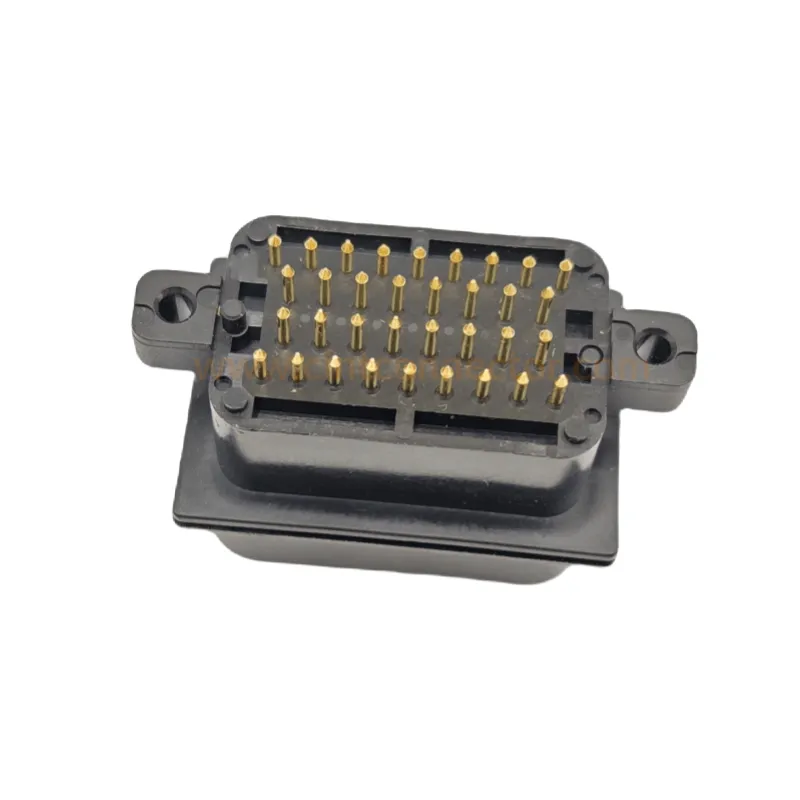

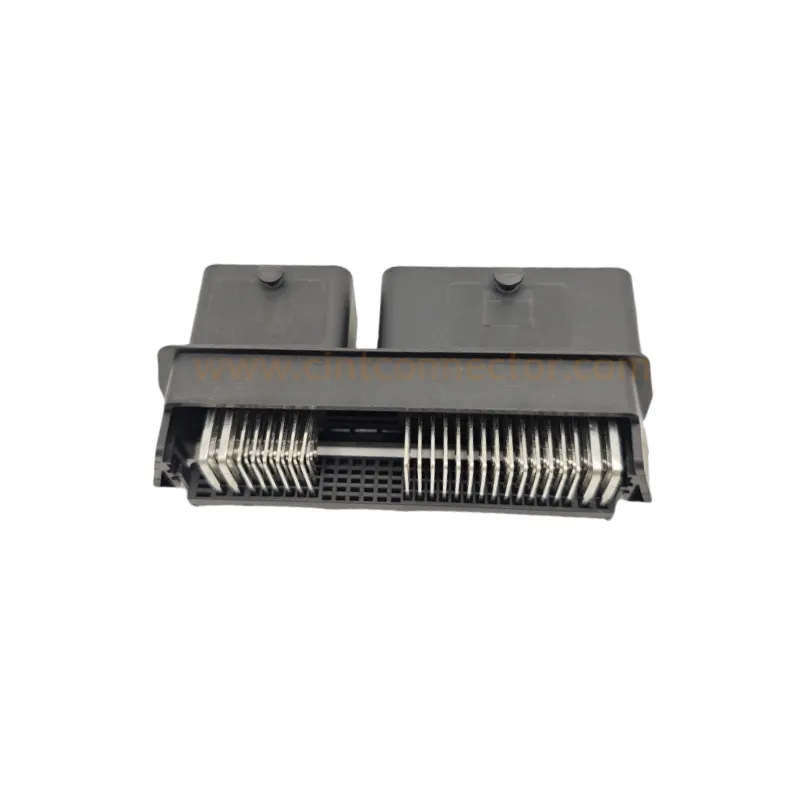

AMPSEAL connectors provide rugged reliability and environmental sealing. They are available in cable plugs and PCB mount headers that are designed to stand up to high-temperature underhood applications.

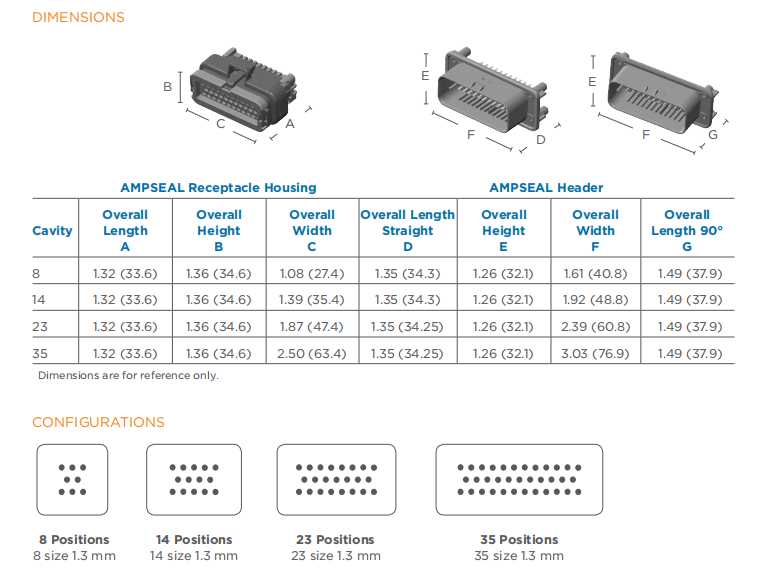

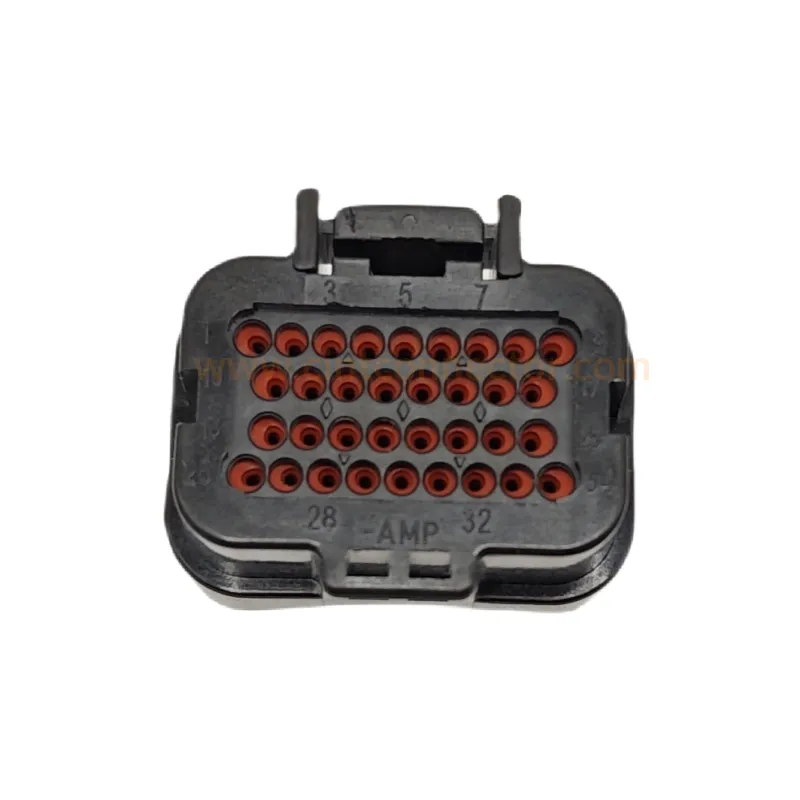

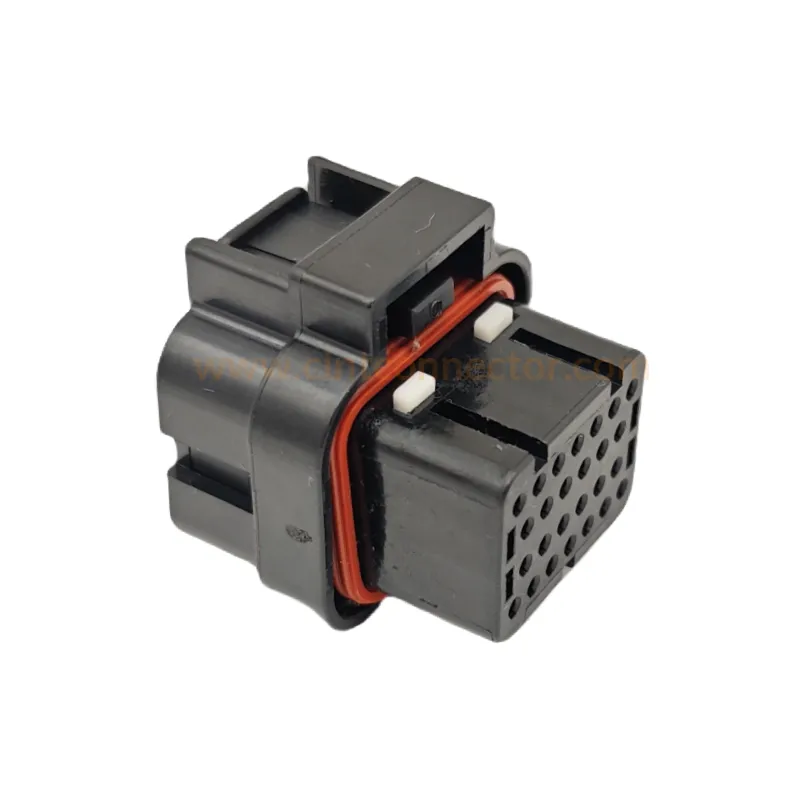

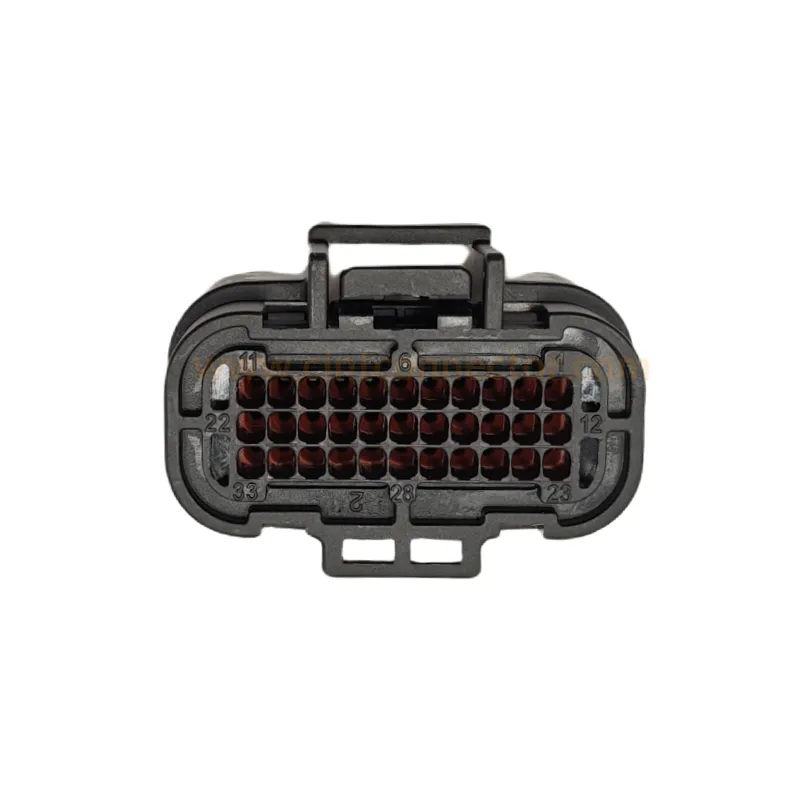

The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial seal that protects mated connectors.

AMPSEAL CONNECTOR PERFORMANCE SPECIFICATIONS

Current: Up to 17 amps gold, up to 8 amps tin

Temperature: Operating at temperatures -40°C to +125°C for gold plated, -40°C to +105°C for tin plated

Durability: See note. Mate and unmate specimens for 10 cycles at maximum rate of 600 cycles per hour.

Physical Shock: No discontinuities of 1 microsecond or longer duration. TE Spec 109-26-1. Subject mated specimens to 50 G's half-sine shock pulses of 11 milliseconds duration. Three shocks in each direction applied along 3 mutually perpendicular planes, 18 total shocks. See Fig 5 in TE product document 108-1329.

Insulation Resistance: 100 megohms minimum. TE Spec 109-28-4. Test between adjacent contacts of mated specimens.

Immersion: Leakage current not to exceed 50 micro-amperes at 48 volts DC. TE Spec 109-74-5. Immerse specimens to a depth of 100 mm in 5% salt water at a temperature of 23 ± 5° C for 1 hour. Check between adjacent circuits and each surface to reference electrode.

Random Vibration: See note. TE Spec 109-21-7, Condition G, except 10-500 Hz frequency

range. Subject mated specimens to 10 Gs for 8 hours each plane.

Voltage: 250 volts AC

Note: Shall meet visual requirements, show no physical damage and shall meet requirements of additional tests as specified in Test Sequence in Figure 3 of TE product document 108-1329.

MATERIAL SPECIFICATIONS

Wire Seal: Silicone rubber

Mating Seal: Silicone rubber

Cover: Glass filled PBT

Locking Wedge: PBT
